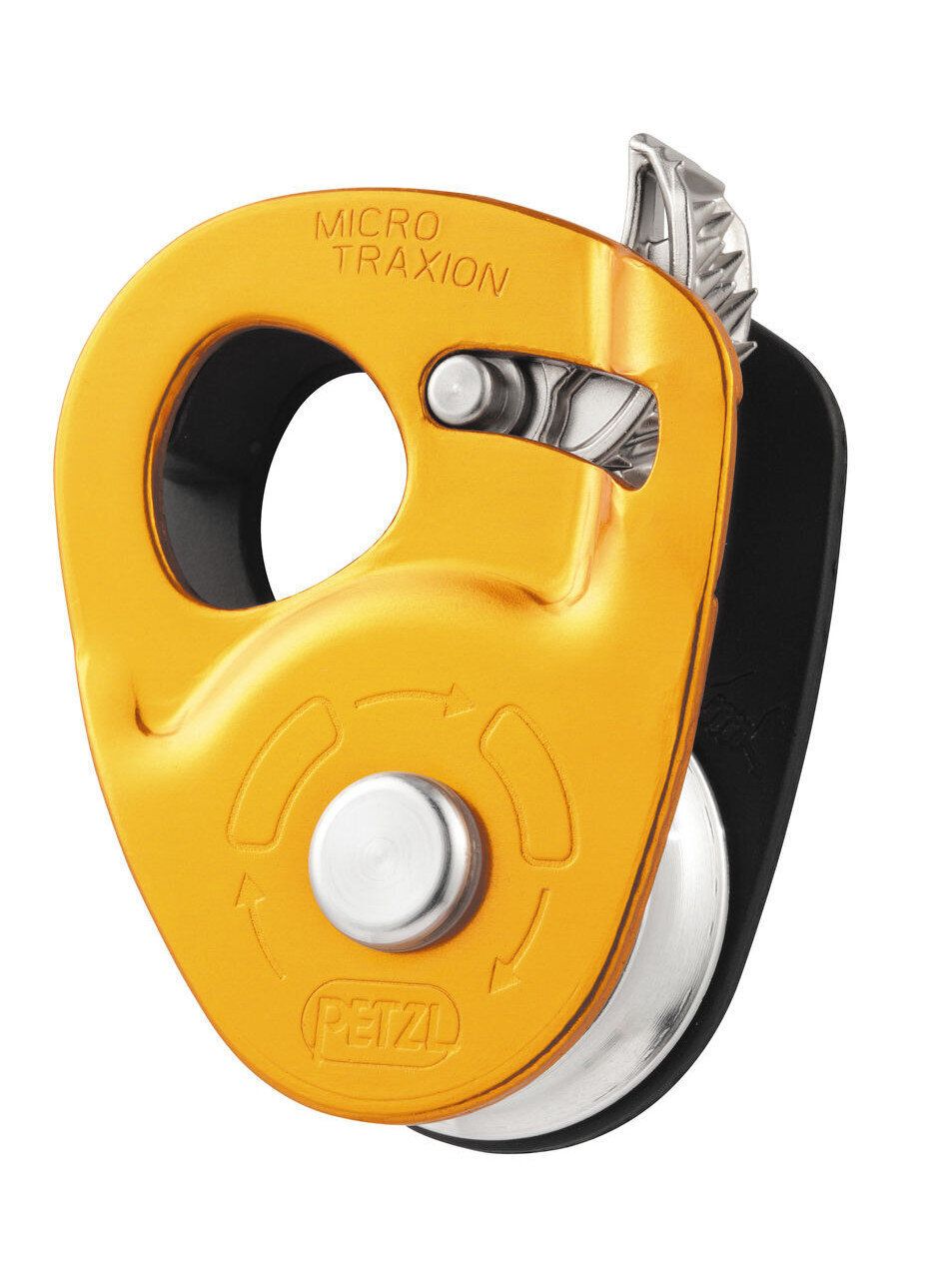

High efficiency, ultra-light progress capture pulley

The MICRO TRAXION is an incredibly lightweight (85 g) and compact progress-capture pulley, boasting exceptional efficiency (91%) due to its sealed ball bearings. Its innovative design allows the cam to be locked in the open position, transforming the device into a simple pulley for added versatility.

• Weight: 85 g

• Certification(s): CE EN 567, UIAA

• Min. rope diameter: 8 mm

• Max. rope diameter: 11 mm

• Sheave type: sealed ball bearings

• Sheave diameter: 25 mm

• Working load: 2 x 2.5 = 5 kN

• Breaking strength: 2 x 7.5 = 15 kN

• Working load as progress capture pulley: 2.5 kN

• Breaking strength as progress capture pulley: 4 kN

• Efficiency: 91 %
